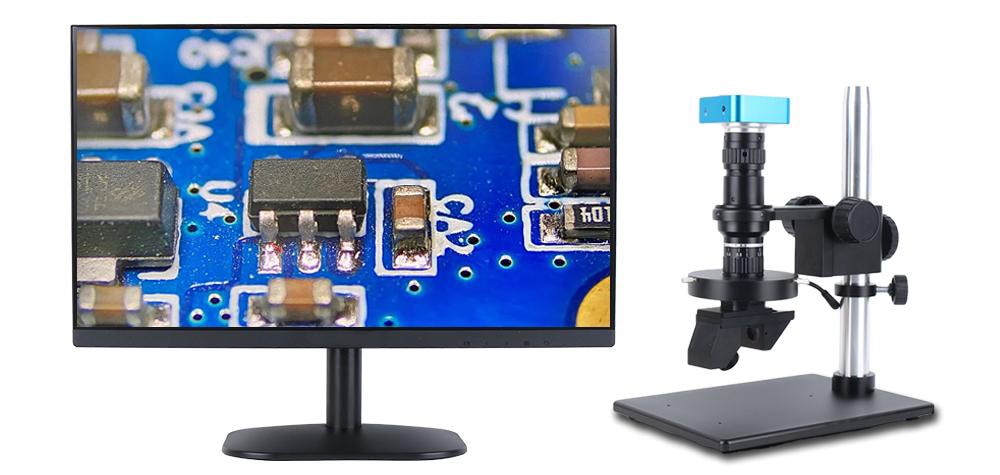

3D VIDEO MICROSCOPE Application: Microelectronics, Deep Hole Wale, PCB Inspection, Precision Hardware Precision Electronics Morphology, Lab, Mobile, PCB Board & Visual Inspection, Textile, Maintenance, Etc. Feature 1. 3D video microscope body based on infinity optical system. 2. Manual switch 2D and 3D observation, 360 °rotation, 45 °objective viewing angle. 3. Working distance always maintain 86mm when you switch 2D and 3D observation, No need to adjust the focus. 4. The center position of 2D and 3D is same, zoom to any magnification have a best image without adjustable. 5. CCD adaptor with fine-tuning device, it can match any CCD camera, When you Finetuning, camera and lens no need to rotate. 6. At Minimum magnification, the field of view is full image without dark edge image, High resolution, large depth of view. 7. Widely used in microelectronics, precision electronics, precision hardware, deep hole wall, life science, morphology, forensic identification. Optical Parameter 2D/3D View 2D and 3D Manual Free Switch. Working Distance Always Remain Same. The Center Position Remain Same. 360 °Rotation, 45 °Objective Viewing Angle. Lens Specification Optical Magnification: 0.6-5.0X High Resolution: 0.6-5.0X Zoom Lens 0.6-5.0X zoom optical with 0.5XCCD (0.3X CCD, 0.5X CCD, 1X CCD Optional) Total Magnification: 11-95X base of 12.5"monitor Working Distance: 86mm Ratio: 1:8.3 Field of View: 24*13.5-2.88*1.62mm Lens Mount: Standard C mount Camera Specification Image Sensor: 1/2” SONY CMOS Max Magnification: 1920 x 1080 Pixel Size: 3.75μm x 3.75μm White Balance: Manual and auto Brightness Control: Manual and auto Record Format: Snapshot, Picture Format JPG. Resolution 1920x1080. Record Route: U disk HDR customized function. Crosshair function Image Output Interface: HDMI Type Light Source Parameter Light Control: 4 zones control. Brightness adjusts Light Colour: White Quantity of LED: 208PCS LED Intensity: 15000 Lux Wavelength: 455-457.5nm Output Voltage: 12V Output Power: 8-10W Working Distance: 35-110mm Material: Aluminium Alloy Diameter: Inner diameter 40mm, outer diameter 106mm, height 19mm Stand: Base Size: 330*300mm Height:328mm Scope Holder: 50mm Supplied Product: 1. Stand Base 2. 2D/3D Rotation View 3. 4 Zones control LED Ring Light 4. Zoom Body 5. CCD Fine Focus Tube 6. HDMI camera 7. Stand Post 8. Focusing Holder Without Monitor – Display your Scope ORIGIN: GABY INSTRUMENTS
