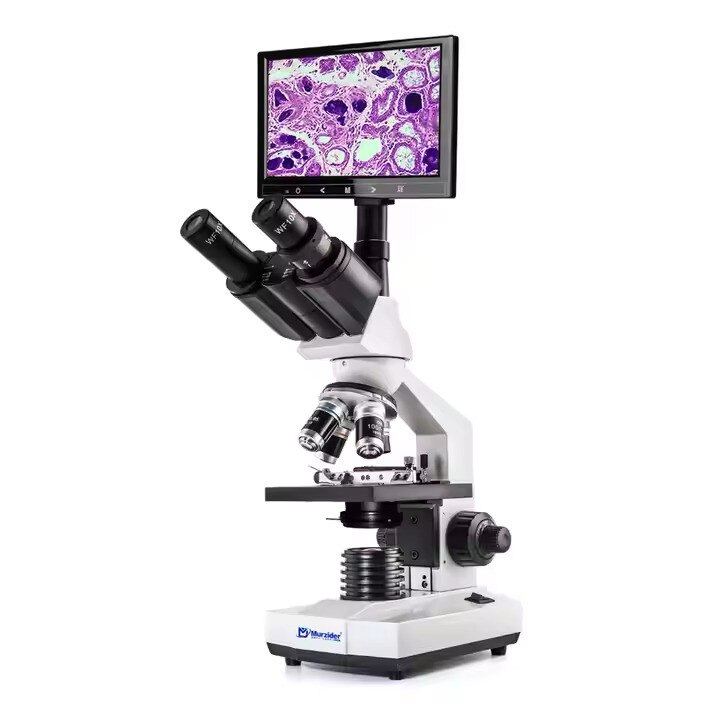

Trinocular Biological Digital Microscope with 9" HD Display | Lab, Education | Camera-Compatible & Adjustable LED

Trinocular Biological Digital Microscope with 9" HD Display | Lab, Education | Camera-Compatible & Adjustable LED

Technical parameter

1、Eyepiece ：10X， wide-angle eyepiece

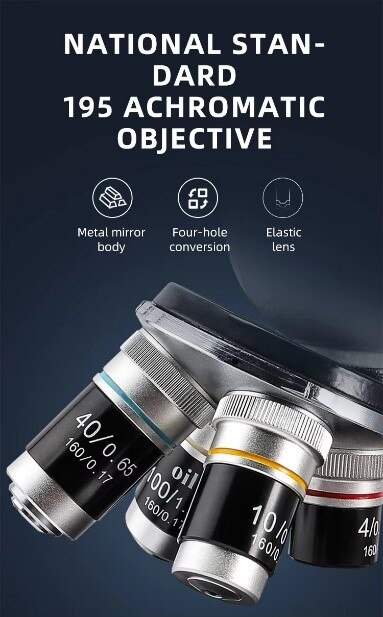

2、Objective ：4X、10X、40X（S）、100X(S、O)

3、Changer： 4-well-tilt converter

4、Eyepiece tube： Trinocular

5、Viewing head : tilted at 30 °, can rotate 360 ° 6、The refractive regulation ：±5

7、Objective table With spiral movement ruler, X-Y direction movement range: 60X40mm

size：110*120mm

8、The focus mechanism： Thick fine tuning coaxial，Fine-tune the lattice value：2μm

9、Condenser：Abbe concentrator NA. 1.25, up and down

10、Lamp source ：High-brightness, adjustable LED light

11、Collecting mirror： N.A.1. 25 The Abbe condenser lens 9-inch display screen parameters 1、Screen specifications ：9”

2、Display mode ：16:9/4:3

3、Screen resolution ：800X480

4、Visual range ：158X90mm

5、Applicable power supply ：DC-12V / 47-63 HZ / current 1.25A
