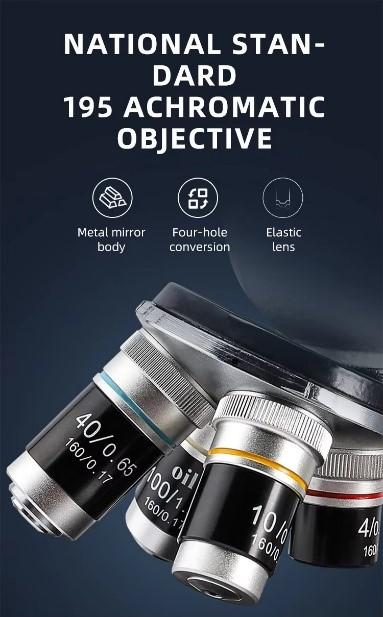

Trinocular Biological Digital Microscope with 9" HD Display | Lab, Education | Camera-Compatible & Adjustable LED Technical parameter 1、Eyepiece ：10X， wide-angle eyepiece 2、Objective ：4X、10X、40X（S）、100X(S、O) 3、Changer： 4-well-tilt converter 4、Eyepiece tube： Trinocular 5、Viewing head : tilted at 30 °, can rotate 360 ° 6、The refractive regulation ：±5 7、Objective table With spiral movement ruler, X-Y direction movement range: 60X40mm size：110*120mm 8、The focus mechanism： Thick fine tuning coaxial，Fine-tune the lattice value：2μm 9、Condenser：Abbe concentrator NA. 1.25, up and down 10、Lamp source ：High-brightness, adjustable LED light 11、Collecting mirror： N.A.1. 25 The Abbe condenser lens 9-inch display screen parameters 1、Screen specifications ：9” 2、Display mode ：16:9/4:3 3、Screen resolution ：800X480 4、Visual range ：158X90mm 5、Applicable power supply ：DC-12V / 47-63 HZ / current 1.25A
